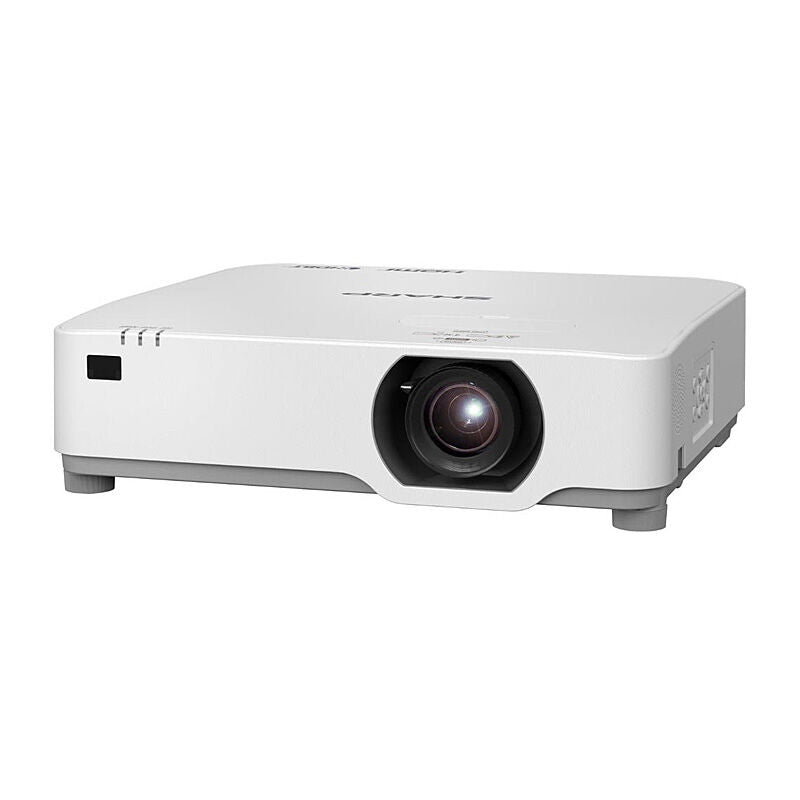

SHARP Professional P701U-W

SHARP Solid State Light Source with dustproof design (no lamp or filter), HD Base T, Low Noise, 4K UHD 30Hz ready, 21:9 aspect ratio

---

Features

• IP5x sealed cooling system provides a filter-free projection solution
• Whisper quiet operation for minimal distraction
• LCD, laser technology delivers an impressive and color accurate image
• Manual horizontal & vertical lens shift enables flexible projector placement
• Built-in HDBaseT input provides a single connection for video, audio and control
• 4K Ready - Display stunning 4K UHD 30Hz content using Sharp's proprietary high performance video processing/scaling chip
• Supports 21:9 aspect ratio for more engaging meeting spaces
• Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education classrooms and corporate conference rooms

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 3,000,000:1
• Brightness (Lumen): 7000 Lm Normal / 7400 Lm Center / 6300 Lm Silent Mode; compliant with ISO21118-2020
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Lens: F = 1.6–2, f = 15.3–24.6 mm
• Lens Shift: H: ±20, V: +44 / 0
• Keystone Correction: +/- 30° manual horizontal / +/- 30° manual vertical
• Projection Factor: 1.08–1.76:1
• Projection Distance (m): 0.8 – 12.9
• Screen Size (diagonal): Maximum 762 / 300"; Minimum 76 / 30"
• Zoom: Manual; x1.6
• Focus Adjustment: Manual

Connectivity

• Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
• Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
• Input Control: 1 x D‑Sub 9 pin (RS‑232) (male)
• LAN: 1 x RJ45
• USB: 1 x Type B (Service); 1 x Type A (USB 2.0 high speed) with 2.0A Power Supply
• Remote Control: Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Help; ID Set; Keystone Correction; Magnify; Page Up/Down; Picture Adjust; Picture Mute; Power (On/Off); Navigation

Electrical

• Power Supply: 100–240 V AC; 50–60 Hz
• Power Consumption: 365W Normal / 330W Silent Mode / 1W Network Stand‑by / 0.4W Stand‑by

Environmental

• Operating Temperature: 5ºC to 40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -10ºC to 50ºC
• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 480 x 122 x 407 (without lens and feet)
• Weight [kg]: 9.7
• Fan Noise [dB(A)]: 31 / 22 (Normal / Silent)
• Colour Versions: White

Other Features

• Safety and Ergonomics: CE; ErP; RoHS; RCM; TUEV Type Approved
• Built‑In Speaker: 1 x 20W (mono)
• Special Characteristics: AMX Beacon; Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; Crestron Connected; Direct Power‑Off Function; Free Tilt; HDBaseT; HTTP Browser Control; Kensington Security Slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 25 languages; Password Security System; PJ LINK; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
• Ecological Standards: ErP compliant; RoHS compliant
• Ecological Materials: Downloadable manuals; ECO packaging
• Shipping Content (Accessories): 2 x AAA Batteries; IR Remote Control; Power Cord; Projector; Quick Setup Guide; Security Sticker; User Manual

---

Specifications

• Product Code: XPP701UW
• Brand: Sharp
• Product Type: Projectors

---
