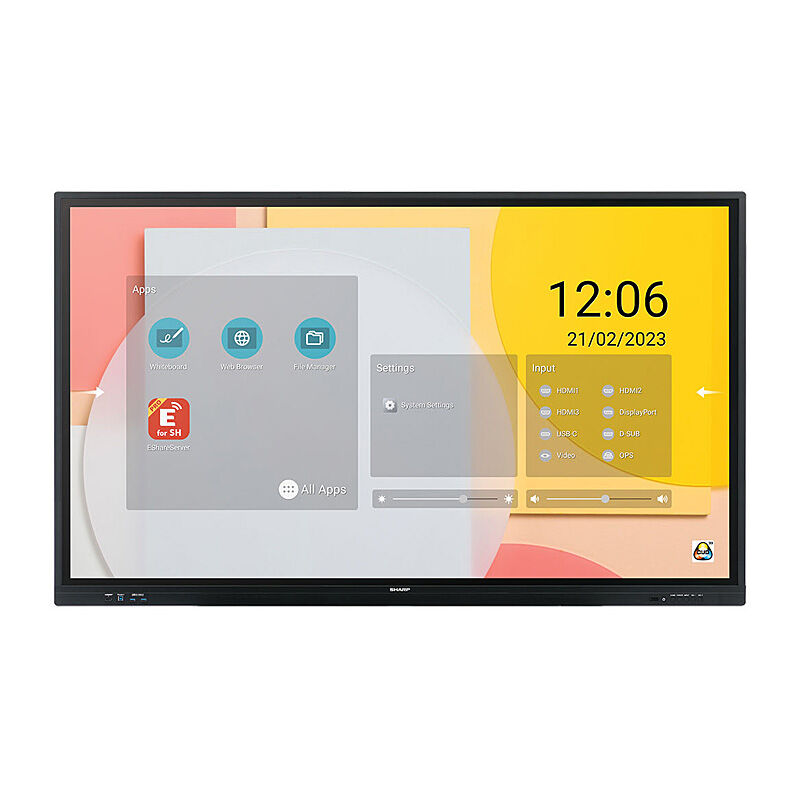

SHARP LC-Series 75'' touch

SHARP Recommended for 16/7 applications. 4K Display at 450nits brightness and 15W stereo speakers. Infrared touch up to 20 multi-touch. Built-in SoC with Android 11 and easy-to-use Applications. Ships with 2x Touch Pens and Wireless LAN Adapter.

---

Features

• Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
• Out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
• EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
• USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
• HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Screen Size: 75 inch
• Max. Resolution: 3840 x 2160 pixels
• Max. Brightness (average): 450 cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178
• Supported Orientation: Landscape
• Dimensions (W x D x H): 1722.5 x 1032.1 x 87.1 millimetre
• Bezel Width: 21.9 (left, right & top); 53.2 (bottom) millimetre
• Weight: 51 kilogram
• VESA Mounting [mm]: 4 holes M8 800 x 400 (FDMI)

Resolution

• Native Resolution: 3840 x 2160
• Supported Resolution: 1920x1080; 3840x2160; 1024x768; 1920x1200; 4096x2160; 1280x720; 1366x768; 1280x1024; 1440x900; 1600x1200; 1650x1050; 2560x1600; 1920x2160

Touch Screen

• Touch Technology: Infrared
• Multi Touch: 20-Points
• Data Interface: USB 2.0 (full speed) HID; USB powered, plug & play

Synchronisation Rate

• Aspect Ratio: 16:9

Connectivity

• Input Video Analogue: 1 x VGA
• Input Video Digital: 1 x Display Port (with HDCP); 1 x USB-C (with HDCP); 3 x HDMI (with HDCP)
• Input Audio Analogue: 1 x 3.5 mm jack
• Input Control: 1 x RS232; LAN 10Base-T/100Base-TX/1000Base-T
• Input Data: 4 x USB 3.0 (Type-B)
• Output Video Digital: 1 x HDMI (loop through: HDMI, DP, OPS slot-in, Android SoC)
• Output Audio Digital: 1 x SPDIF
• Wireless LAN: IEEE802.11ac/n/a/g/b compliant
• Bluetooth: 4.2 compliant; supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP

SOC

• OS: Android 11.0
• CPU: Arm Cortex-A55 (Quad-Core)
• Memory: 4GB
• Storage: 32GB

Open Modular Intelligence

• Compute Module Slot: Slot Technology: Open pluggable specification (NEC/Intel OPS Standard)

Electrical

• Power Consumption: 200W ECO (Shipping setting), 420W
• Power Savings Mode: <0.5W (ECO Standby); 2W (Network Standby)
• Operating Hours: 16/7

Environmental

• Operating Temperature: 5°C to 35°C
• Operating Humidity: 20% to 80% (no condensation)

Other Features

• Safety and Ergonomics: CE; FCC; RCM; REACH; RoHS; UL/C-UL
• Audio (Speakers): Integrated Speakers (15W + 15W)
• Shipping Content (Accessories): 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter

---

Specifications

• Product Code: PN-LC752
• Brand: Sharp
• Product Type: Other

---
