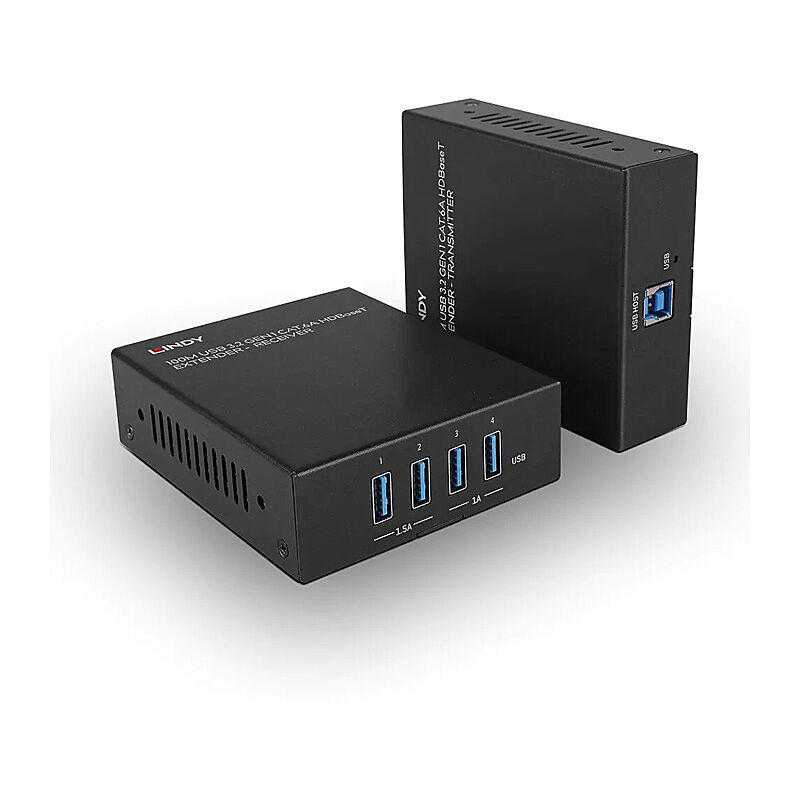

Lindy 100m USB3.2 Gen 1 CAT6A HDBaseT Extender [43410]

Lindy 100m USB 3.2 Gen 1 CAT6A HDBaseT Extender

---

Features:

• Extend 4 USB 3.2 Gen 1 ports up to 100m using Cat.6A network cable (not included)
• Power over Cable requires a single power supply to be connected to the transmitter or receiver only
• Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports
• Plug & Play installation
• 2 year warranty

Specifications:

• USB Standard: USB 3.2 Gen 1
• Supported Bandwidth: 5Gbps
• Maximum Distance: 100m (328.08ft)
• Transmission Medium: Cat.6A or higher network cable
• Chipset: VS6320
• Special Features: Power over Cable, supports FSYNC, RS232, control, bulk, interrupt and isochronous data transfer

Connectors

• Transmitter Input: USB 3.0 Type B (Female)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: 4 x USB Type A (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 100x85x30mm (3.94x3.35x1.18in) each
• Housing Material: Metal
• Net Weight: 0.5kg (1.1lb)
• Operating Temperature: 0° - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 24VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 235x150x80mm (9.25x5.91x3.15in)
• Gross Weight: 0.9kg (1.98lb)
• Warranty (Years): 2 Product
• Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Whats in the box?

• Transmitter unit
• Receiver unit
• 1m USB 3.2 Gen 1 Type A Male to B Male cable
• 2 x 4-Pin Terminal Block
• Multi-Country Power Supply (EU, UK, US & AUS)
• Mounting brackets & screws
• Lindy Manual

---

Specifications

• Product Code: 43410
• Brand: Lindy
• Product Type: Other
• Weight: 1.05 kg

---
