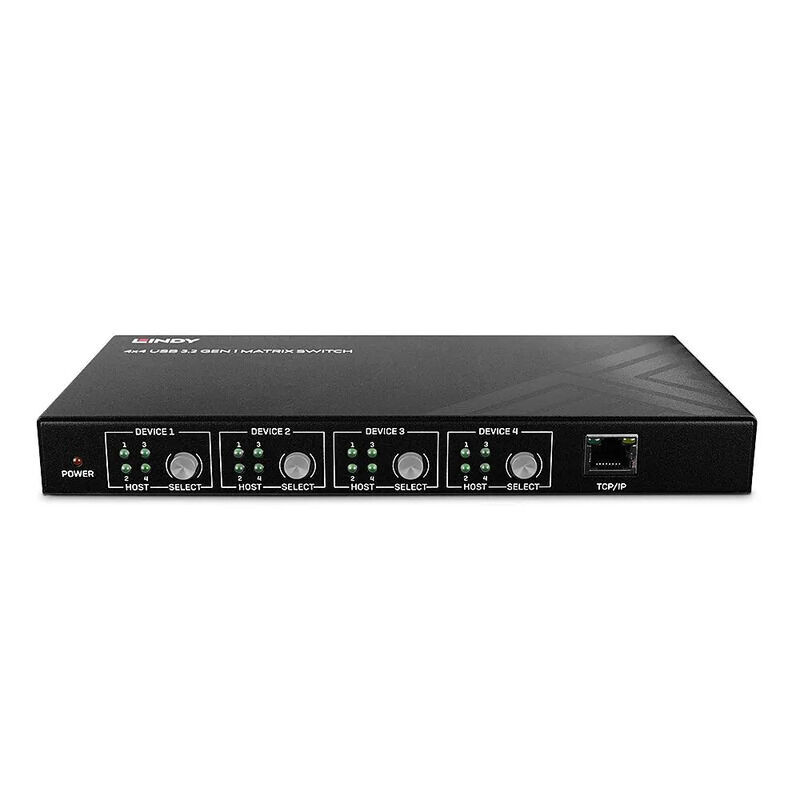

Lindy 4x4 Matrix Switch [43406]

Features

• Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backwards compatibility
• Switching between computers with buttons, TCP/IP with web GUI or RS-232 commands
• Matrix switch with presets function
• Plug & Play, no software required
• 2 year warranty

Specifications

• USB Standard: USB 3.2 Gen 1
• Supported Bandwidth: 5 Gbps
• Chipset: AT32F437 + VL817
• Compatibility: USB equipped computers
• Power Delivery: 900mA on each USB Type A port
• Special Features: Switching by buttons; web GUI, RS-232 commands

Connectors

• Inputs: 4 x USB 3.0 Type B (Female)
• Outputs: 4 x USB Type A (Female)
• Control Ports: RJ-45 (Female), RS-232 3-Pin Terminal Block
• Power: 5.5/2.5mm

Physical Properties

• Dimensions WxDxH: 221x105x26mm (8.7x4.13x1.02in)
• (Fixed) Cable Length: -
• Housing Material: Metal
• Net Weight: 1.15kg (2.54lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 12V 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 260x173x70mm (10.24x6.81x2.76in)
• Gross Weight: 1.45kg (3.2lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Specifications

• Product Code: 43406
• Brand: Lindy
• Product Type: Other
