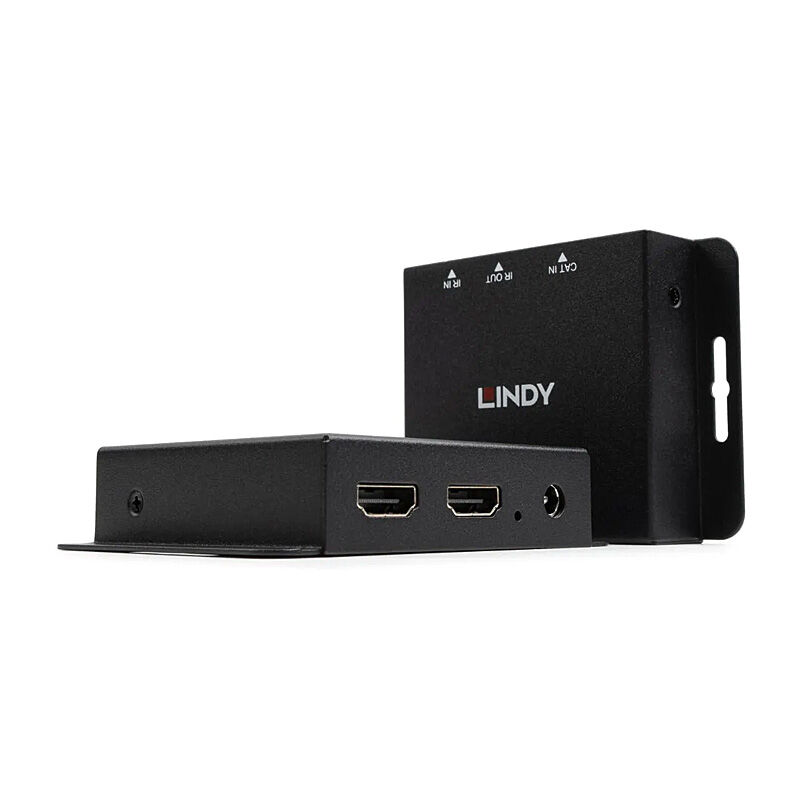

Lindy 50m CAT6 HDMI & IR EXT [38509]

Features

• Extends HDMI® and IR signals up to 50 m using a single Cat.6 cable.
• Supports resolutions up to Full HD 1080p.
• Includes a loop‑through HDMI® output on the transmitter for local monitoring.
• Supports Power over Cable (PoC), requiring only one power supply.
• Backed by a 2‑year warranty.

Specifications

Technical Specifications

• AV Interface: HDMI®
• Interface Standard: 1.3
• Supported Bandwidth: 4.95Gbps
• Maximum Distance: 50m (164.04ft)
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: HDCP 1.4
• EDID: Pass-through
• Supported Audio: Up to 7.1 (pass-through)
• Separate Audio Ports: -
• IR Support: 20–60kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 × Cat.6
• Laser Class (Fibre only): -
• Wavelength (Fibre only): -
• Chipset: GSV100T
• Special Features: PoC (Power over Cable), IR pass-through, Loop Out

Connectors

• Transmitter Input: HDMI® Type A (Female), 3.5mm IR (Female)
• Transmitter Output: HDMI® Type A (Female), RJ‑45 (Female), 3.5mm IR (Female)
• Receiver Input: RJ‑45 (Female), 3.5mm IR (Female)
• Receiver Output: HDMI® Type A (Female), 3.5mm IR (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) W × D × H: 96 × 20 × 68 mm (3.78 × 0.79 × 2.68 in) each unit
• Housing Material: Metal
• Net Weight: 0.44 kg (0.97 lb)
• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: -20°C – 60°C (-4°F – 140°F)
• Humidity: 20–90% RH (no condensation)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215 × 75 × 135 mm (8.46 × 2.95 × 5.31 in)
• Gross Weight: 0.61 kg (1.34 lb)
• Warranty: 2 years
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Specifications

• Product Code: 38509
• Brand: Lindy
• Product Type: Other
• Weight: 600 g
