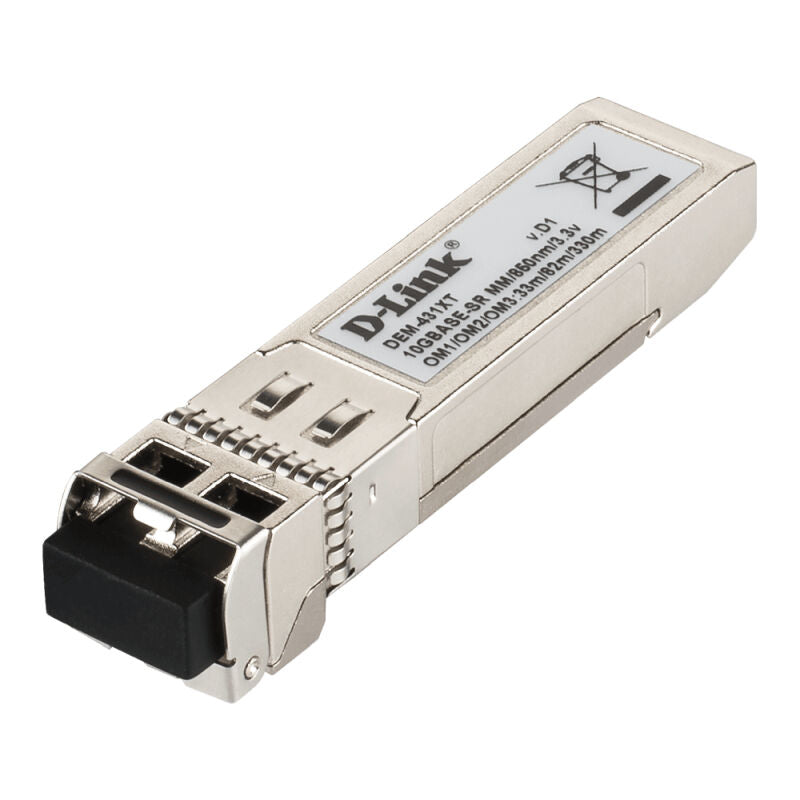

D-Link 10GBase-SR SFP+ Multimode Transceiver (300m) [DEM-431XT]

D-Link's 10G SFP+ Module series are hot-swappable, 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.

---

Specifications:

• Standard Compliance: IEEE-802.3ae, 10GBASE-SR
• Form Factor Type: SFP+
• Fibre Channel FC-PI: Standard 1200-Mx-SN-I
• Fiber Media Support: Multi-Mode
• Distance Capacity: 62.5m, 160 MHz-km: 26m, 62.5m, OM1 200 MHz-km: 33m, 50m, 400 MHz-km: 66m, 50m, OM2 500 MHz-km: 82m, 50m, OM3 2000 MHz-km: 300 m
• Hot Pluggable: Yes
• Compliant: MSA, RoHS
• Speed: 10 Gbps
• Connector: Duplex LC Connector
• Wavelength: 850 nm
• Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -6.5 dBm
• Input Optical Power (RX Optical Power): Max.: -1 dBm, Min.: -11.1 dBm
• Sensitivity: -11.1 dBm
• Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
• Power: 3.3 V
• Heat Generated: 3.6 kJ/h
• MTBF (Hours): 3,960,000
• Operating Temperature: 0 to 70 C
• Storage Temperature: -40 to 85 C
• Operating Humidity: 5 to 85%
• Storage Humidity: 5 to 95%
• Dimensions: 14.8 x 56.5 x 11.85 mm
• Weight: 18 g
• Bail Latch Color: Beige
• EMI: CE, FCC, VCCI
• Safety: UL, TUV, CDRH

Features:

• Enhanced Small Form-Pluggable (SFP+) form factor
• Hot pluggable
• Support 10G Ethernet
• Feature Digital Diagnostics Monitoring (DDM)1
• RoHS Compliant
• Compliant with MSA (Multiple Source Agreement)
• Compliant with IEEE802.3ae and 802.3aq standards

---
